OPERATING DATA |
|
Operating Weight | 18,200 kg |
Height top of ROPS | 3,460 mm |
Overall length w/ bucket | 8,080 mm |
Overall length w/o bucket | 6,780 mm |
Bucket width | 2,950 mm |
Height Hinge Pin Max | 4,120 mm |
Tipping load - straight | 14,670 kg |
Tipping load – articulated at 40° | 12,780 kg |
Bucket volume | 3.5 m³ |
Payload | 6,390 kg |
Dump height max. at max height | 2,940 mm |
Bucket rollback angle | 45 ° |
Tipping angle (bucket dump) w/ bucket at max height | 55 ° |
Loader raising time (loaded) | 6.2 seconds |
Loader dump time | 1.2 seconds |
Loader lowering time | 2.5 seconds |
Breakout force max | 147.5 kN |
Wheelbase | 3,340 mm |
Ground Clearance | 420 mm |
|
|
ENGINE / MOTOR | |
Engine make and model | FPT N67 |
Engine performance | 230 hp / 172 kW |
RPM / speed | 1800 rpm |
Displacement | 6.7 l |
Fuel tank capacity | 288 l |
AdBlue tank capacity | 41.3 l |
|
|
HYDRAULIC SYSTEM | |
Auxiliary Hydraulics | 236 l/min |
Pressure aux. relief | 249 – 255 bar |
Hydraulic oil tank | 91 l |
|
|
4-SPEED POWERSHIFT TRANSMISSION | |
Travel speeds (forward) | 7 km/h – 12 km/h – 23 km/h – 37 km/h |
Travel speeds (reverse) | 7 km/h – 13 km/h – 25 km/h |
|
|
AXELS & TYRES |
|
Rear axle oscillation | 24 ° |
Axles | Open diff with automatic lock system |
Tractive effort on slippery ground | 100 % |

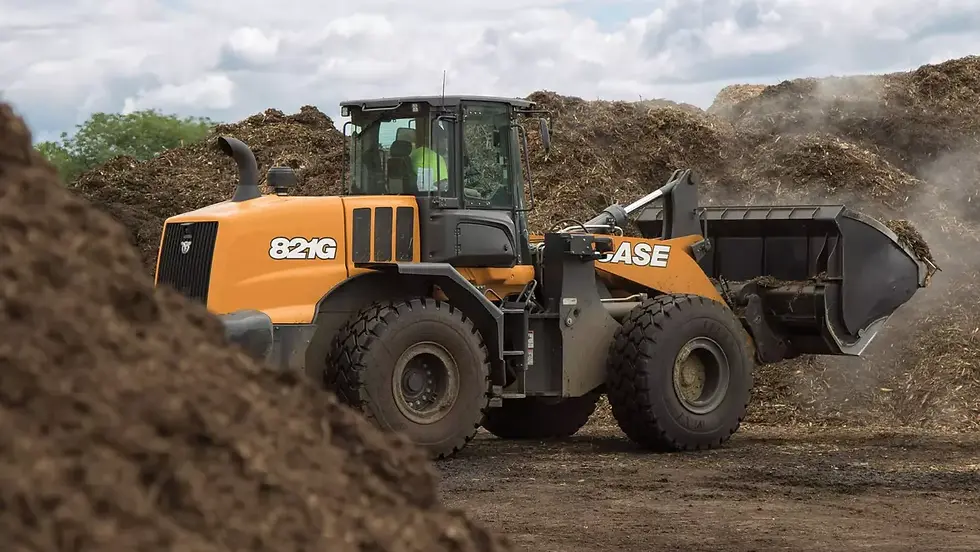

Case 821G Wheel Loader
Information
CASE’s Tier 4 Final SCR engine technology makes the 821G wheel loader an ideal choice for high production loading and hauling applications. The innovative Selective Catalytic Reduction (SCR) technology maintains peak engine performance while increasing fuel efficiency, keeping exhaust temperatures low, eliminating regeneration and avoiding the need for replacing expensive Diesel Particulate Filters (DPF). In addition to more than 15,000 kg of breakout force, the 821G also features the CASE mid-mount Cooling Cube, which provides direct access to cool, clean, ambient air for each cooler, as well as an optional reversing fan to keep the coolers clean and keep you and your machine working, instead of cleaning clogged coolers.
Download Brochure
Complete Product Information
Superior Comfort and Visibility
- Seat mounted console
- Premium control interface with 8’’ display
- Hands-free calling kit
- Multiple storage areas
- Active suspension premium seat
- One-piece design windshield, highefficiency lighting, convex rear mirrors and rear view camera provide optimum visibility 24 hours a day
Superior Cooling Effectiveness
- CASE cooling cube technology
- Extra thin inlet grille that stops bigger particles
- Sealed radiator covers that ensure the cooling air is 100% filtered
- Wide core radiators increase self cleaning with the reversible fan and prevent clogging
High Productivity
- Up to 38% payload-to-weight ratio
- Best-in-class breakout force
- Integlligent clutch cut-off
- F-N-R switch on joystick
- Return-to-dig, return-to-travel, boom auto-lift features
Heavy-duty Axles
The heavy-duty axles are tougher, bigger and easier to service thanks to the 3-piece housing design. Wet multiple disc brakes, made of resistant sintered bronze, are located in each wheel hub. Our heavy-duty axles are engineered to support L5 or solid tyres for very abrasive environments. Solid tyres can be factory fitted.
A higher value results from:
- Automatic 100% lock system on front differential
- 20-30% lower tyre wear because of no slippage between the wheels
- reduced fuel consumption because there is no friction in the differential
- reduced downtime for maintenance because of fewer moving components with open differentials
