OPERATING DATA | |
Operating weight | 1,029 kg |
Height to top of ROPS | 2,261 mm |
Transport length | 2,828 mm |
Width | 700 mm - 880 mm |
Rear swivel radius | 747 mm |
Superstructure slewing speed | 8.0 rpm |
Biting force (maximum) | 4.5 kN |
Breakout force (maximum) | 8.9 kN |
Digging depth (maximum) | 1,763 mm |
Dump height (maximum) | 2,035 mm |
Digging radius (maximum) | 3,090 mm |
ENGINE / MOTOR | |
Engine make and model | Yanmar 3TNV70 |
Engine performance | 13.3 hp / 9.9 kW |
RPM / speed | 2100 rpm |
Displacement | 0.8 l |
Fuel tank capacity | 7 l |
AdBlue tank capacity | N/A |
HYDRAULIC SYSTEM | |
Auxiliary Hydraulics | 21 l/min |
Pressure aux. relief | 170 bar |
Hydraulic oil tank | 14 l |
UNDERCARRIAGE | |
Length of travel gear | 1,220 mm |
Track type | Rubber |
Track chain width | 180 mm |
Ground clearance | 132 mm |
Travel speed (maximum) | 1.8 km/h |

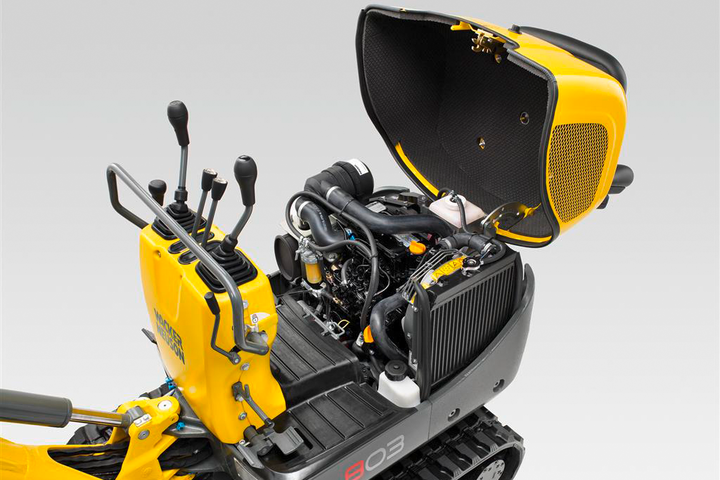

Wacker Neuson 803 - Mini Excavator
Information
The 803 is the smallest Wacker Neuson excavator - but leaves absolutely nothing to be desired in terms of performance. Its narrow width of only 700 mm allows it to fit perfectly through interior doors, while its rubber tracks protect the flooring. This means it fits perfectly through interior doors and is gentle on the floor covering thanks to its rubber tracks. Special attention was paid to the hydraulic performance. Attachments, such as the tuned Wacker Neuson hydraulic breaker, can be operated without any problems using the standard auxiliary hydraulics.
Complete Product Information
Compact and Agile
Optimal working in limited working conditions, high maneuverability and time savings are guaranteed. The expandable and retracable variable track width and foldable ROPS safety bar allows access into almost any area.
Attachment Versatility
The standard one-way auxiliary hydraulics offer more flexibility in use, making hammer operation possible at any time. As an option, it can be converted to a two-way auxiliary hydraulic system, including for swing bucket applications. The excavator is therefore ideal for demolition and renovation work in confined spaces.
